MAIN PUMP ASS’Y JPU03/JPU03A/JPU04 /JPK01/JPK02/ JPK03/JPK04/JPK05/JPK06/JPK07/JPK08
SKU: 2500
Categories: All Products, AUTOMOTIVE INDUSTRY, CAR PARTS, GEAR BOX & GEARED MOTORS, MACHINERY, OIL PUMPS
DESCRIPTION
Excavator (JI hydraulic, dozer, crawler, caterpillar etc) – Main pump assembly
Models: JPU03, JPU03A, JPU04 , JPK01, JPK02, JPK03, JPK04, JPK05, JPK06, JPK07, JPK08
JP2D25/28, JP2D36, J3SP36, J3V63DT, J3V112DT, J3V140DT, J3V180DT, J5V80DTP, J5V140DTP, J5V200DTP
SPECIFICATION
| Model | Max Displacement(cc/rev) |
Pressure |
Max
Flow
|
Max Speed Self Priming |
Max Input Torque |
Application | |||||||
| Rated | Max | ||||||||||||
| A1 | A2 | A3 | A4 | kgf/cm2 | MPa | kgf/cm2 | MPa | ℓ/min | rpm | kgf·m | N·m | ton | |
| JP2D25 +GP16.2/4.5 |
25 | 25 | 16.2 | 4.5 | 220 | 21.6 | 250 | 24.5 | 55X2 | 2,200 | 14 | 137.3 | 5 |
| JP2D28 +GP18.3/4.5 |
27.3 | 27 | 18.3 | 4.5 | 220 | 21.6 | 250 | 24.5 | 60.9X2 | 2,200 | 14 | 137.3 | 5 ~ 7 |
| JP2D36 +GP6.5 |
37 | 37 | – | 6.5 | 280 | 27.5 | 300 | 29.4 | 74X2 | 2,000 | 13.5 | 132.4 | 5 |
| JP2D36 +GP12.1/6.5 |
37 | 37 | 12.1 | 6.5 | 280 | 27.5 | 300 | 29.4 | 74X2 | 2,000 | 17.8 | 174.6 | 5 ~ 7 |
| J3SP36 +GP9 |
36 | 36 | – | 9 | 280 | 27.5 | 320 | 31.4 | 79X2 | 2,200 | 21.2 | 207.9 | 8 |
| J3SP36 +GP20.3/12.7 |
36 | 36 | 20.3 | 12.7 | 280 | 27.5 | 320 | 31.4 | 79X2 | 2,200 | 21.2 | 207.9 | 8 |
| J3V63DT | 63 X 2 | 350 | 34.3 | 400 | 39.2 | 2,650 | 3,250 | 35 | 343.2 | 13 ~ 17 | |||
| J3V112DT | 112 X 2 | 350 | 34.3 | 400 | 39.2 | 2,360 | 2,700 | 60 | 588.4 | 20 ~ 25 | |||
| J3V140DT | 140 X 2 | 350 | 34.3 | 400 | 39.2 | 2,150 | 2,500 | 114 | 1118 | 29 ~ 37 | |||
| J3V180DT | 180 X 2 | 350 | 34.3 | 400 | 39.2 | 1,950 | 2,300 | 114 | 1118 | 39 ~ 45 | |||
| JTV80DTP | 80 X 2 | 350 | 34.3 | 400 | 39.2 | 2,460 | 3,000 | 54 | 529.6 | 13 ~ 17 | |||
| J5V140DTP | 140 X 2 | 350 | 34.3 | 400 | 39.2 | 2,160 | 2,500 | 86 | 843.4 | 29 ~ 37 | |||
| J5V200DTP | 200 X 2 | 350 | 34.3 | 400 | 39.2 | 1,900 | 2,200 | 114 | 1118 | 39 ~ 50 | |||

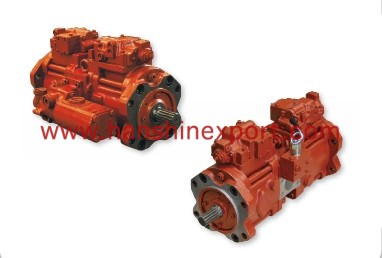

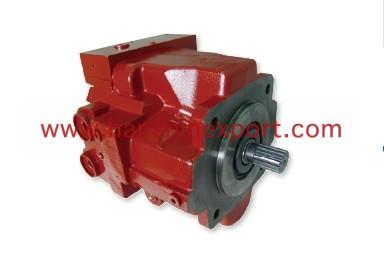

PRODUCT IMAGE
