ROCK DRILL EQUIPMENT [EXCAVATOR ATTACHMENT] / БУРОВОЕ ОБОРУДОВАНИЕ

SKU: 2512

DESCRIPTION

Rock drill equipment [Excavator attachment / Mini drill rig] / Буровое оборудование

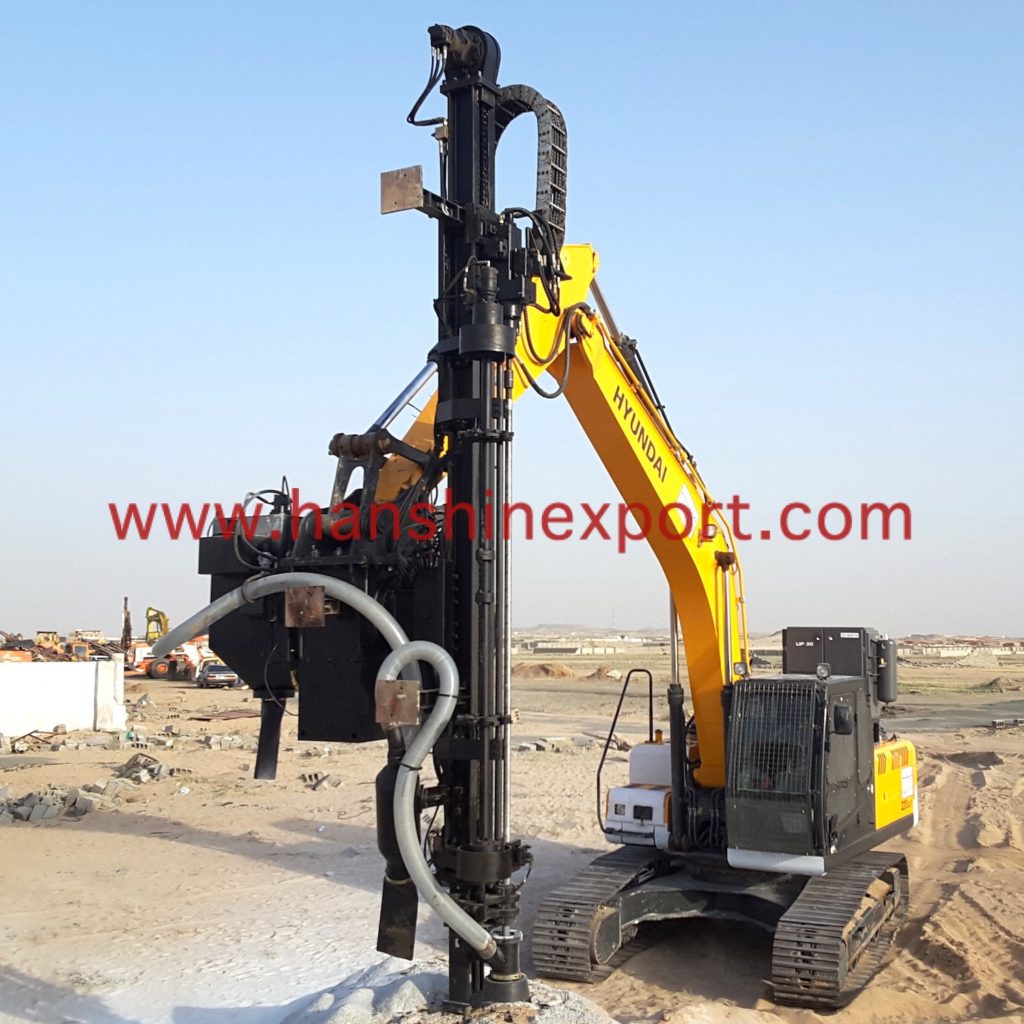

EXCAVATOR ATTACHED ROCK DRILL

COMBINATION OF THE EXCAVATOR AND CRAWLER DRILL

The special attachment, EX-Drill series provides you with economical and efficient performance through multiple functions using the hydraulic power of excavator and wide working range. Convenient and easy control system of the EX-Drill enable you to work the drilling with existing excavator without further investment.

The optimized design of the EX-Drill to show the powerful performance and durability at the job sites ensures safety and comfort work as well as easy access to the key components in order for simple and rapid maintenance. In addition, Accumulated technology and service of Feeleng will give you the best satisfaction continuously

.

FEATURES
  • Easy installation using two hydraulic lines
  • Inclusion of the crawler drill’s main functions (Auto rod changer, Dust collector, Air compressor)
  • Optimized design & Substantial structure
  • Simple attachment & detachment – same as other attachments •Cable and wire – less control wide view & safe working of operator
  • Strong power of drifter
ADVANTAGES
  • Reasonable cost for drilling work (Cost-cutting ; fuel & labor & transportation)
  • Easy transportation – 5tons truck available
  • Wide working range – Advantage in slope, rough terrain, upward drilling
  • Simple & easy control
  • Competitive price than other drilling rig
  • Simple repair & low maintenance cost
APPLICATION

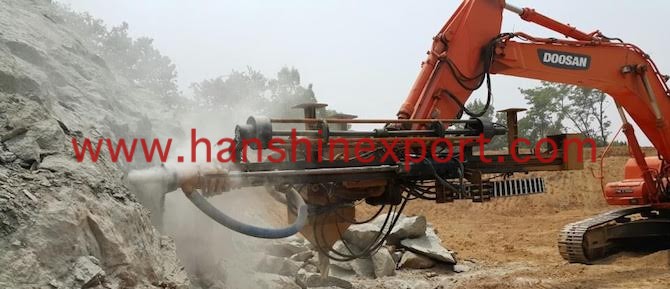

  • Drilling for blasting hole at Quarry, Mining
  • Anchoring, rock bolting, draining
  • Trenches and roads opening
  • Rough terrain construction
  • High reach drilling.
SPECIFICATIONS OF FINE ATTACHMENT ROCK DRILL
MODEL HS-Drill 50 HS-Drill 150 HS-Drill 300 HS-Drill 400
Dimension
Weight 1000kg 1500kg 3100kg 3500kg
Length 2500mm 3400mm 6300mm 6300mm
Width 1200mm 1850mm 2765mm 2765mm
Height 900mm 1235mm 1310mm 1310mm
Feed System
Working range 45 degree 280 degree 280 degree 280 degree
Tilte 90 degree 280 degree 15 degree 15 degree
Feed Force, max. 8kN 10kN 28kN 28kN
Tractive Force, max. 10kN 12kN 32kN 32kN
Total length 3400mm 3400mm 6300mm 6300mm
Travel length 1500mm 2025mm 4000mm 4000mm

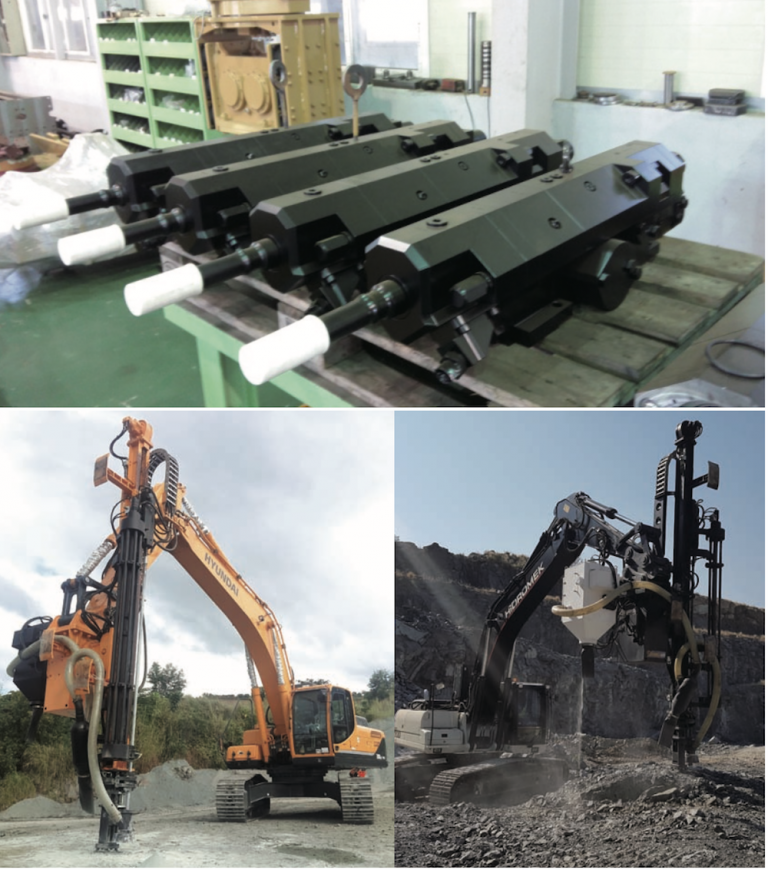

Drifter
Model FD 50 FD300 FD300 FD400
Weight 77kg 150kg 150kg 210kg
Impact Power 77kw 11kw 12kw 20kw
Rotation Speed 0~250rpm 0~290rpm 0~290rpm 0~290rpm
Rotation Torque 175Nm 630Nm 630Nm 690Nm
Hydraulic Pressure 145bar 180bar 220bar 220bar
Hydraulic oil flow 80lpm 90lpm 115lmp 135lmp
Air compressor
Model UP30
Weight 860kg
Air flow 6.2m3/min
Air pressure 5bar
Oil flow requested 100lpm
Oil pressure requested 220bar
Power 37.3kw
Auto-Rod changer
Number of Rods (Std.) 1 1 1+3 1+6
Bit Diameter 41~76mm 55~150mm 64~105mm 76~127mm
Rod size R32 T38 T38/T45 T38/T45
Max. Hole depth 1m 1.5m 12m 21m
First Rod length 1220mm 1830mm 3660mm 3660mm
Suitable Machine
Excavator weight 6~10tons 8~20tons 20~26tons 32~45tons

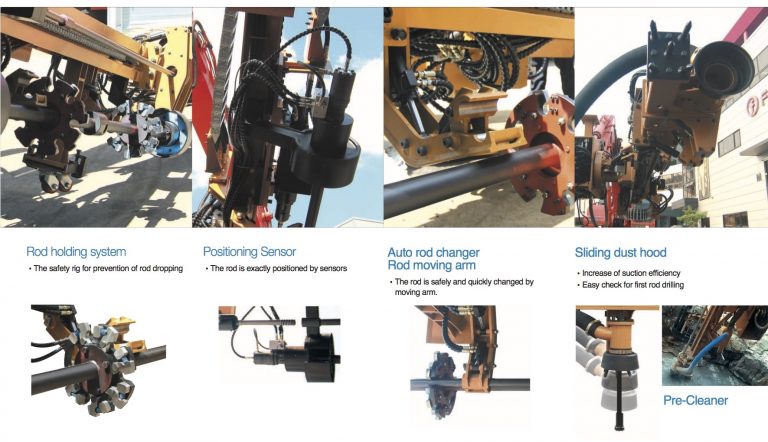

DRILL ATTACHMENT PART

DRIFTER SPECIFICATION
