SOLID STATE RELAY SDA2-225Z UNION ELECOM
SKU: 1976
DESCRIPTION

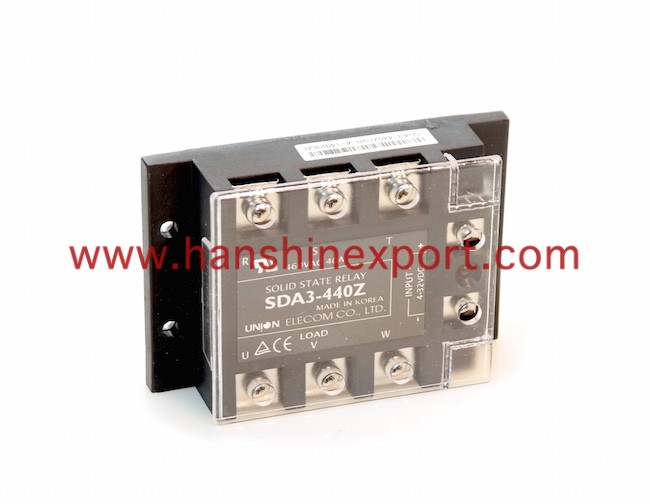

Solid state relay SDA2-225Z SDA3-44OZ UNION ELECOM
1 PHASE, 2 PHASE OR 3 PHASE SOLID STATE RELAY 15~50A
| Series | Model No. | Approvals | Input | Output | Trigger Form | Size(mm) / Weight |
| SDA3-2 | SDA3-215Z | UL,CE | 4~32Vdc | 240V15A | Zero-cross | 109.5×74.5×28/320g |
| SDA3-225Z | UL,CE | 240V25A | ||||
| SDA3-240Z | UL,CE | 240V40A | ||||
| SDA3-250Z | CE | 240V50A | ||||
| SDA3-4 | SDA3-415Z | UL,CE | 4~32Vdc | 460V15A | Zero-cross | 109.5×74.5×28/320g |
| SDA3-425Z | UL,CE | 460V25A | ||||
| SDA3-440Z | UL,CE | 460V40A | ||||
| SDA3-450Z | CE | 460V50A | ||||
| SAA3-2 | SAA3-215Z | UL,CE | 85~240Vac | 240V15A | Zero-cross | 109.5×74.5×28/320g |
| SAA3-225Z | UL,CE | 240V25A | ||||
| SAA3-240Z | UL,CE | 240V40A | ||||
| SAA3-250Z | CE | 240V50A | ||||
| SAA3-4 | SAA3-415Z | UL,CE | 85~240Vac | 460V15A | Zero-cross | 109.5×74.5×28/320g |
| SAA3-425Z | UL,CE | 460V25A | ||||
| SAA3-440Z | UL,CE | 460V40A | ||||
| SAA3-450Z | CE | 460V50A |
