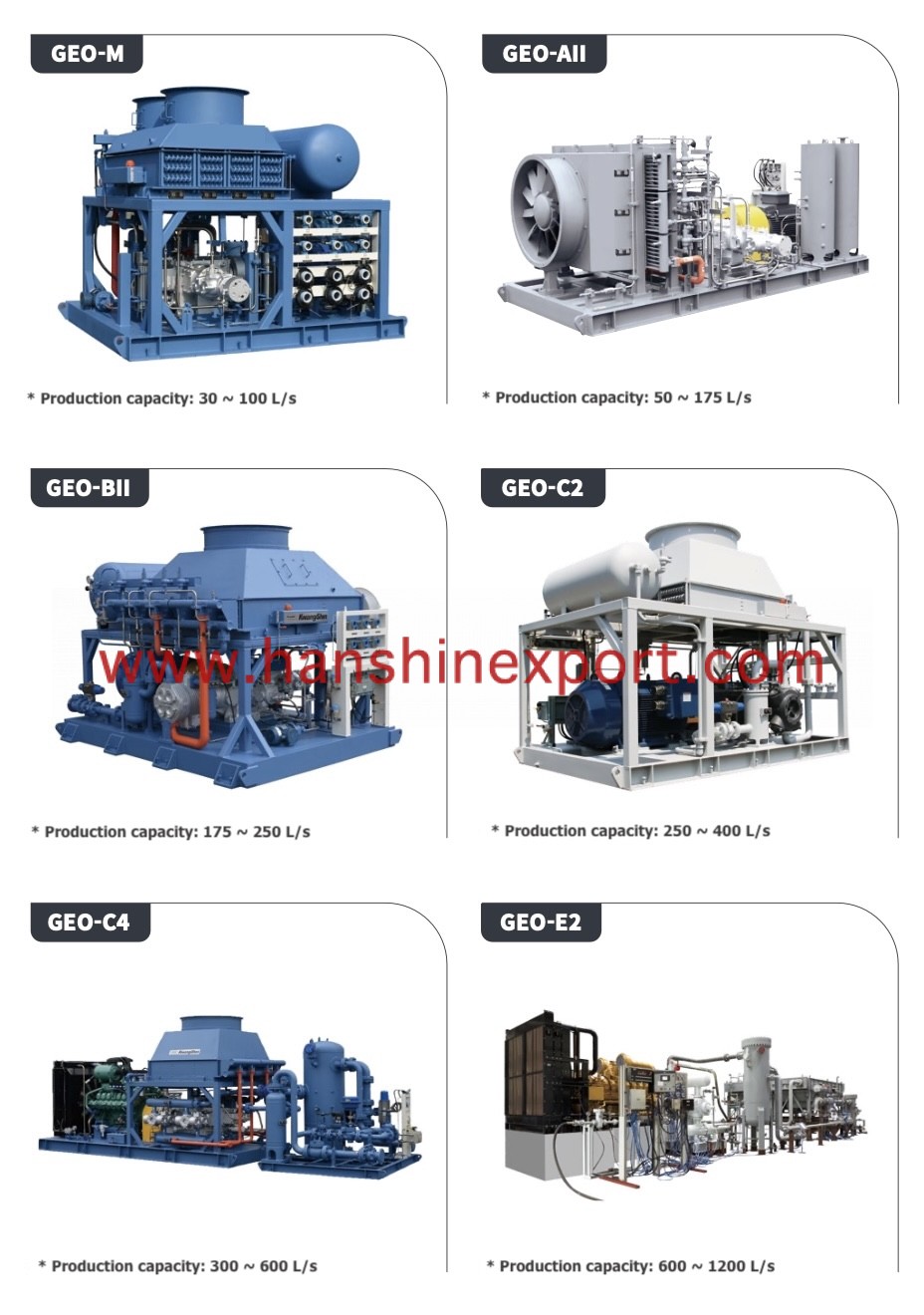

GEO-M FEATURES

• Inlet pressure : 0~200Bar
• Discharge pressure : 250~350Bar
• Required power : 30~100HP
• RPM : Maximum 1800RPM
• Electric or motor Natural gas engine driven
• Air cooling or Water cooling type heat exchanger

GEO-AII FEATURES

• 2Throws balance opposed type
• Inlet pressure : 0~200Bar
• Discharge pressure : 250~350Bar
• Required power : 50~175HP
• RPM : Maximum 1800RPM
• Electric or motor Natural gas engine driven
• Air cooling or Water cooling type heat exchanger

GEO-BII FEATURES

• 2Throws balance opposed type
• Inlet pressure : 0~200Bar
• Discharge pressure : 250~350Bar
• Requried power : 175~250HP
• RPM : Maximum 1800RPM
• Electric or motor Natural gas engine driven
• Air cooling or Water cooling type heat exchanger

GEO-C2&C4 FEATURES

GEO-C2

• Throws: 2Thorws
• Inlet pressure: 0~200Bar
• Discharge pressure: 250~350Bar
• Required horse power: 250~400HP
• RPM Maximum: 1800RPM

GEO-C4

• Throws: 4Thorws
• Inlet pressure: 0~200Bar
• Discharge pressure: 250~350Bar
• Required horse power: 300~600HP
• RPM Maximum: 1800RPM
• Electric motor driven or Natural gas engine driven
• Air cooling or Water cooling type heat exchanger

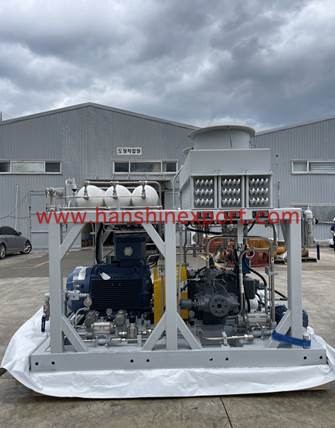

CNG Pipeline-Booster compressor package AII-125HP [966Nm3/hr, 15.0~250.0bar.G]

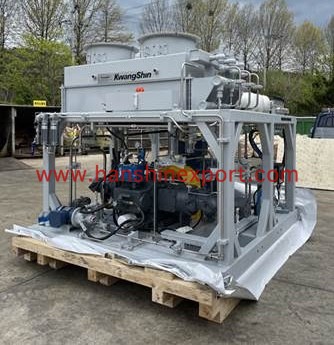

MAKER: KWANG SHIN
