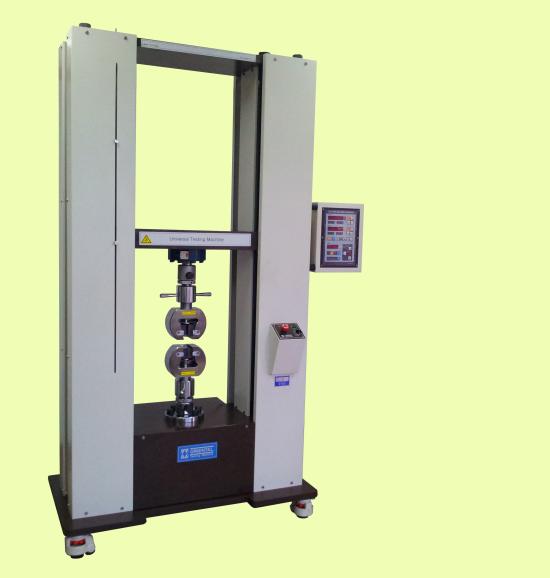

DIGITAL TENSILE TESTING MACHINE ORIENTAL SERIES 500 KGF ~ 30,000 KGF
DESCRIPTION
DIGITAL TENSILE TESTING MACHINE ORIENTAL SERIES 500 KGF ~ 30,000 KGF
Practical Testing Solutions
The Oriental series series provides superior performance and practical testing solutions for a wide array of applications. Offering high-level control and intuitive operation, the Oriental tensile testing series sets a new standard for strength evaluations while providing the utmost in safety considerations in a modern, stylish design.
| MODEL | OTU-05 | OTU-1 | OTU-2 | OTU-5 | OTU-10 | OTU-20 | OTU-30 |
|---|---|---|---|---|---|---|---|
| Style | FLOOR STANDING | ||||||
| Max. capacity kgf (kN) | 500 (5000) | 1000 (10000) | 2000 (20000) | 5000 (50000) | 10000 (100000) | 20000 (200000) | 30000 (300000) |
| 1Div kgf (N) | 0.05 (0.005) | 0.1 (0.01) | 0.2 (0.02) | 0.5 (0.05) | 1 (0.1) | 2 (0.2) | 3 (0.3) |
| Load sensor | LOAD CELL | ||||||
| Load Accuracy | +/- 0.5% F.S | ||||||
| Stroke Digit | 0.01mm | ||||||
| Stroke Sensor | ROTARY ENCODER | ||||||
| Stroke | 600 mm | ||||||
| Motor | AC servo or AC induction | ||||||
| Test control | Auto or Manual | ||||||
| Test speed | 0.1 ~ 500 (by order) | ||||||
| Test mode | Tensile, Compression, Bending, Cycle | ||||||
| Main screw | Ball screw | ||||||
| Test accessory | Tensile Grip, Compression plate, Bending test jig | ||||||
| PC system | Not included | ||||||
| Software | Computer control program | ||||||
| Electric Power | 2P, 220V, 50 or 60Hz | 3P, 220V, 50 or 60Hz | |||||
| Safety | |||||||
| Usage terms | Temp: +5 ~ 35°C, Hum: 20~70% | ||||||
| Sizes | 110*60*190 (550kg) | 120*70*200 (850kg) | 130*78*240 (1500kg) | ||||
| Standard accessory | User manual, Programm manual, Tool box, Programm CD | ||||||
| Option | |||||||
| Test | Can be provided if needed | ||||||
| A/S | Warranty: 1 year | ||||||
EASY CONTROL OF STRESS AND STRAIN
Offers real-time auto tuning of control parameters, based on measured test force and strain data. Safely make comparisons to unknown sample data without the need for preliminary tests.
 |
IRON & STEEL |
In addition to conventional stress control, tensile testing with strain control is increasingly in demand.
ISO 6892-2009
|
 |
PLASTICS & RESIN | Measuring the modulus of elasticity in the ultra-small strain domains proscribed by ISO and JIS standards has become a necessity.
ISO 527 ISO 178
|
 |
CERAMICS | Many samples are damaged by microscopic displacements, so accurate control is needed, right from the start of testing. |
ACHIEVE AN ACCURATE S-S CURVE WITH HIGH-PRECISION LOAD CELLS
The wide, guaranteed load cell precision range of 1/500 to 1/1 improves testing efficiency and ensures that virtually all of your testing can be performed without switching the load cell or jig. Furthermore, high-speed sampling of 1msec ensures no missed strength changes.
COMMON JOINT FOR BOTH TENSILE AND COMPRESSION TESTS (20-300KN FRAME)
Adopts a single joint for both tension and compression tests. This makes it easier to exchange jigs. In addition, the joint is set with a nut placed in the upper part of the loading cell, which allows for safe detachment of the joint on the table.
EASY CONTROL OF STRESS AND STRAIN
The main operation panel enables the development and storing of test conditions, allowing testing without having to connect to a PC. Perform various operations with the jog wheel, such as opening and shutting the button for automatic grips or the automatic extensometer. The main operational panel is movable, allowing convenient adjustment of the angle.
SAFETY FUNCTION / ONE-TOUCH STROKE LIMIT
The safety function stops the testing machine if force changes exceed a certain level during specimen setting or return. In addition, setting stroke limiters is easy with one touch of the switch.
