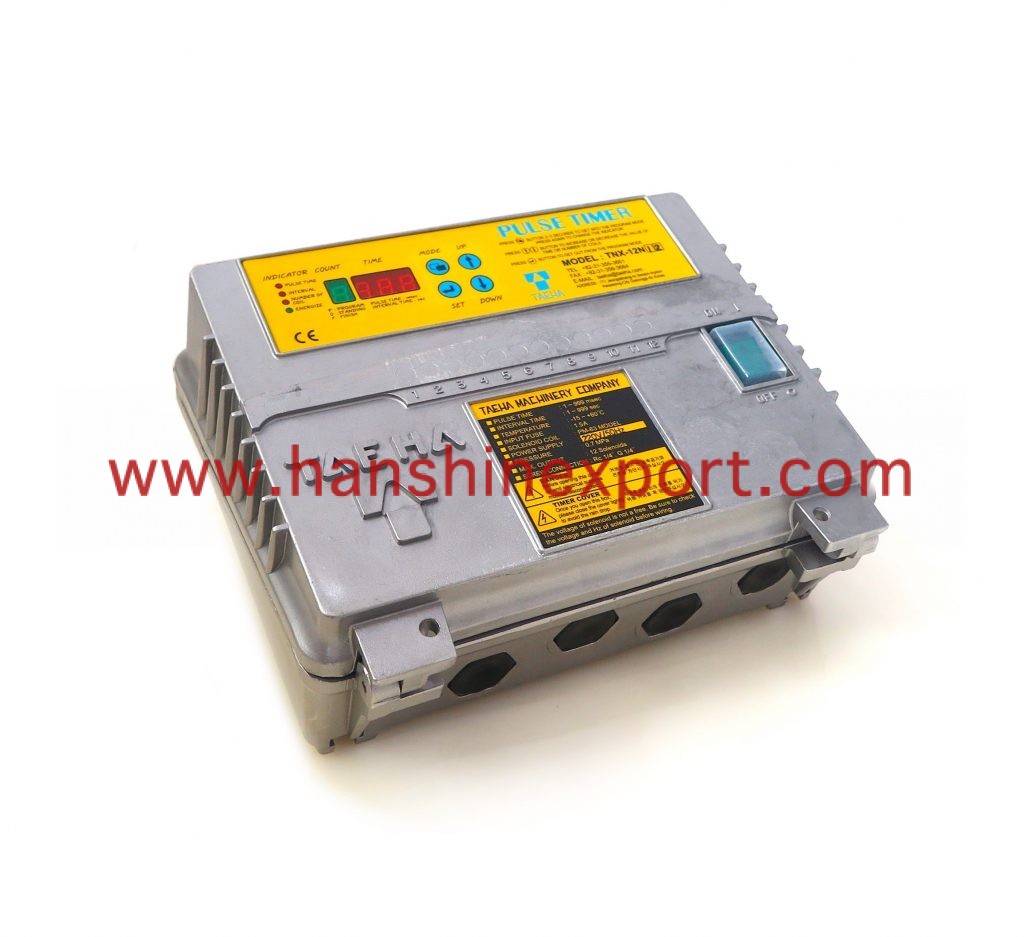

Pulse TNX timer / TAEHA

1.Aluminum Die-Casted Box

As the PCB of TNX timer is located in the aluminum dis-casted box, it facilitates the water-proofing and

dust-proofing.

2.All function in Digital

Using the highly quantitative micro-computer circuit, when the noise inflow from the outside, the program

in the EP-ROM pack senses the noise, and performs the function of auto-compensation.

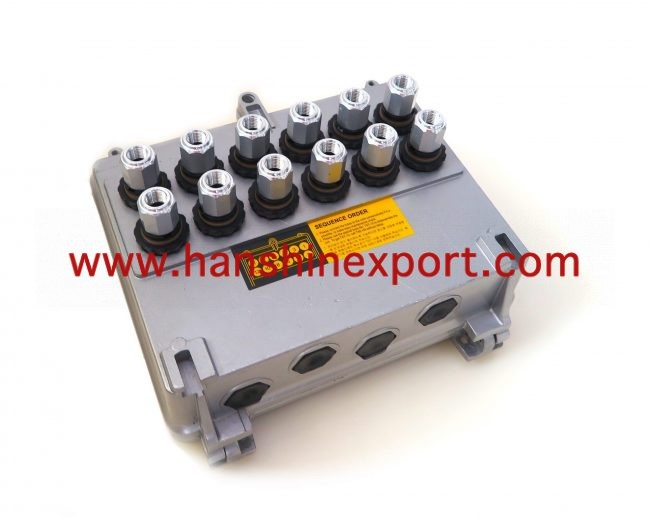

3.Pre-Wired with Solenoid

TNX timer includes the built-in solenoid coils(PM-63) and all necessary wiring. There should be no

need to wire between timer card and solenoid coil to prevent humidity/dust from corrosion of coil.

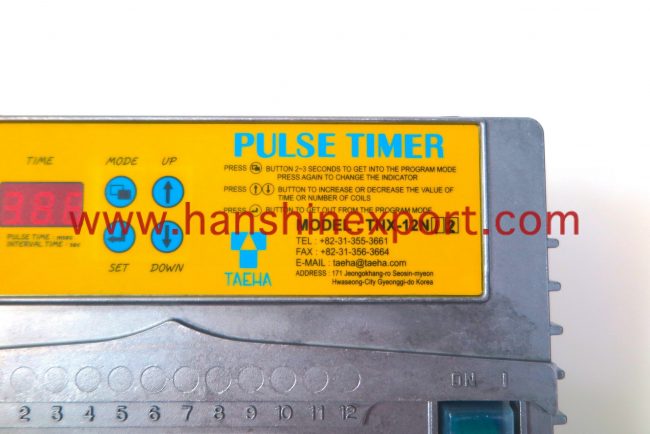

4.Exterior design for all controls

It has exterior displays like main power switch, time setting keys. These exterior displays allow the

monitoring, time setting and damage checking of the timer without opening the timer case.

5.Free Voltage Function

This timer board has a free voltage function (AC85 ~ 240V/50 ~ 60Hz)

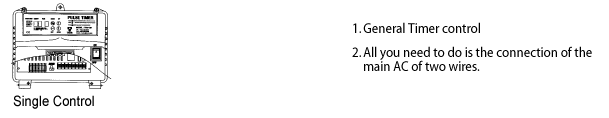

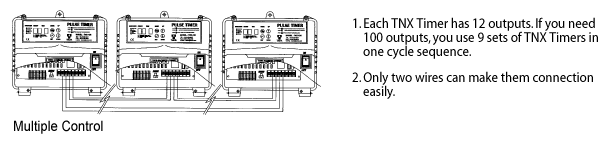

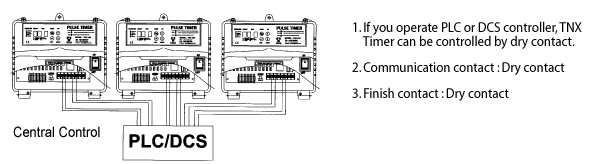

6.Variety of Single/Multiple/Central Control

By using a Remote ON/OFF and Finish signal output functions, TNX timer is available in Sing/Multiple/

Central control that fits your Dust collector system.

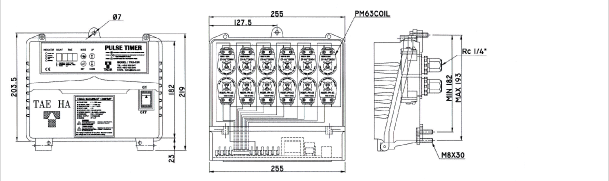

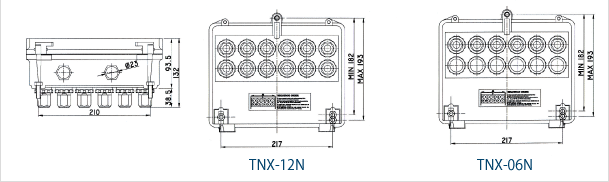

DIMENSION
